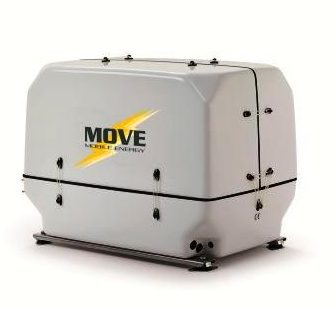

MOVE 9000 – 8 kW – 3000 RPM
Geratori veicolari 3000 gpm, Vehicle Generators
Other specifications
REMOTE CONTROL AND CONTROL
With hour meter, load indicator, automatic stop for low oil pressure and water overtemperature, starter motor release, quick connector and 15 MT. of cable
| ALTERNATOR | |
|---|---|
| ALTERNATOR MANUFACTURER | V.T.E. – VOLPI TECNO ENERGIA, ITALIA |
| ALTERNATOR TYPE | SYNCHRONOUS WITHOUT BRUSHES, COOLED WITH WATER |
| CONTINUOUS ELECTRICAL POWER KVA | 9 KVA (50 Hz); 9 KVA (60 Hz) |
| CONTINUOUS ELECTRICAL POWER KW | 8 KW (50 Hz)/ 8 KW (60 Hz) |
| BATTERY CHARGE | 12 V – 8 A |
| NUMBER OF PHASES | 1 |
| PEAK CURRENT | 102 A |
| ALTERNATOR COOLING | WATER, EXCHANGER IN STAINLESS STEEL AISI 316 L |
| ENGINE | |
|---|---|
| ENGINE MANUFACTURER | LOMBARDINI, ITALIA |
| ENGINE MODEL | LDW 702 |
| CYLINDERS NR. | 2 |
| MECHANICAL POWER | 10 KW (50 Hz); 12 KW (60 Hz) |
| ROTATION SPEED | 3000 rpm (50Hz) e 3600 rpm (60Hz) |
| CONSUMPTION OF GAS OIL | 0,35 lt./KW/h |
| COOLING SYSTEM | TOTAL LIQUID IN CLOSED CIRCUIT WITH EXTERNAL RADIATOR |
| DISPLACEMENT (cm<span class="apex">3</span>) | n.s. |
| STARTING SYSTEM | ELECTRIC A 12 V |
| REMOTE CONTROL | Yes |
| COOLING PUMP | DIRECTLY CALETTED |
| GENERAL SPECIFICATIONS | |
|---|---|
| DIMENSIONI (mm) | 970 X 580 X 650h |
| PESO (CAPSULA INCLUSA) (Kg) | 228 |
| EMISSIONI ACUSTICHE | 54 dB(A) |
