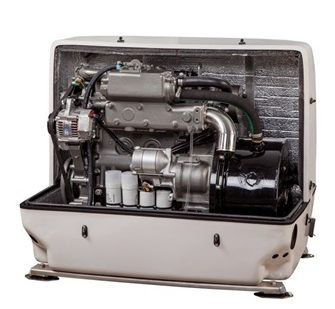

PAGURO 12500 – 12 KW – 1500 RPM
Paguro Volpitecno Energia Generatori Marini e Veicolari
PAGURO 12500 – 12 KW – 1500 RPM
Other specifications
REMOTE CONTROL
Remote control with LCD display.
Hour meter, load indicator, frequency / engine rotation speed.
Automatic shut-off for low oil pressure and / or overtemperature.
Quick connector and 15 meters of cable.
Automatic start.

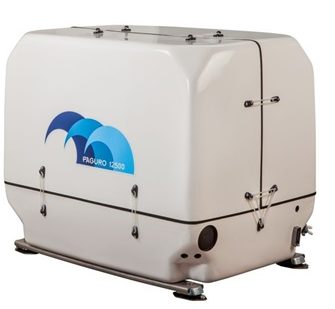

SOUNDPROOFING CAPSULE
Acoustic insulation with reinforced composite fiberglass capsule and coating in high-density sound-absorbing material.
The capsule, composed of two upper and lower parts, allows installation even in narrow spaces.
Double anti-vibration system, inside 4 soft supports and 4 external semi-elastic supports.
| ALTERNATOR | |
|---|---|
| ALTERNATOR MANUFACTURER | V.T.E. SRL – ITALIA |
| ALTERNATOR TYPE | SYNCHRONOUS WITHOUT BRUSHES |
| CONTINUOUS ELECTRICAL POWER KVA | 12,5 KVA (50 Hz) |
| CONTINUOUS ELECTRICAL POWER KW | 12 KW (60 Hz) |
| BATTERY CHARGE | 12 V – 8 A |
| NUMBER OF PHASES | 1 |
| PEAK CURRENT | 150/300 A |
| ALTERNATOR COOLING | STAINLESS STEEL AIR / WATER EXCHANGER |
| ENGINE | |
|---|---|
| ENGINE MANUFACTURER | YANMAR |
| ENGINE MODEL | 3TNV88 |
| CYLINDERS NR. | 3 |
| ROTATION SPEED | 1500 rpm (50 Hz) and 1800 rpm (60 Hz) |
| CONSUMPTION OF GAS OIL | 0,35 lt./KW/h |
| COOLING SYSTEM | FRESH WATER WITH HEAT EXCHANGER |
| STARTING SYSTEM | ELECTRIC A 12 V |
| REMOTE CONTROL | Yes |
| COOLING PUMP | SELFPRIMING |
| GENERAL SPECIFICATIONS | |
|---|---|
| DIMENSIONS (mm) | 1020 X 631 X 828 |
| WEIGHT (CAPSULE INCLUDED) (Kg) | 370 |
| NOISE LEVEL dB | 49 dB(A) |
