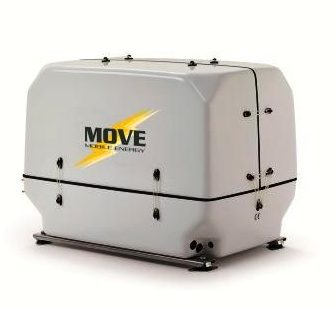

MOVE 9000 F – 8 KW – 3000 RPM
Geratori veicolari 3000 gpm, Vehicle Generators
Other specifications
REMOTE CONTROL AND CONTROL
With hour meter, load indicator, load indicator, automatic stop for low oil pressure and overheating water, starter motor release, quick connector and 15 MT. of cable
| ALTERNATOR | |
|---|---|
| ALTERNATOR MANUFACTURER | V.T.E. – VOLPI TECNO ENERGIA, ITALIA |
| ALTERNATOR TYPE | PERMANENT MAGNETS |
| CONTINUOUS ELECTRICAL POWER KVA | 9 KVA (50 Hz) |
| CONTINUOUS ELECTRICAL POWER KW | 8 KW (50Hz) |
| BATTERY CHARGE | 12 V – 8 A |
| NUMBER OF PHASES | 1 |
| PEAK CURRENT | 65 A |
| ALTERNATOR COOLING | n.s. |
| ENGINE | |
|---|---|
| ENGINE MANUFACTURER | LOMBARDINI, ITALIA |
| ENGINE MODEL | LDW 702 |
| CYLINDERS NR. | 2 |
| MECHANICAL POWER | 10 KW |
| ROTATION SPEED | 3000 rpm |
| CONSUMPTION OF GAS OIL | 0,35 lt./KW/h |
| COOLING SYSTEM | CLOSED CIRCUIT LIQUID WITH EXTERNAL RADIATOR |
| DISPLACEMENT (cm<span class="apex">3</span>) | n.s. |
| STARTING SYSTEM | ELECTRIC A 12 V |
| REMOTE CONTROL | Yes |
| COOLING PUMP | DIRECTLY CALETTED |
| GENERAL SPECIFICATIONS | |
|---|---|
| DIMENSIONI (mm) | 860 X 580 X 650h |
| PESO (CAPSULA INCLUSA) (Kg) | 210 |
| PESO ELETTRONICA CONTROLLO (Kg) | 15 |
| EMISSIONI ACUSTICHE | 54 dB(A) |
